Beskrivning
| Tekniska data | |
| Types of luminaires: | Classic on/off or DALI |
| Mounting type: | Suspended - cable |
| Base material: | steel |
| Shade material: | three-layer glass TRIPLEX OPAL |
| Base color: | white Ral9003 or Black |
| Shade color: | white |
| Holding the shade: | steel holder |
| Mounting location: | ceiling |

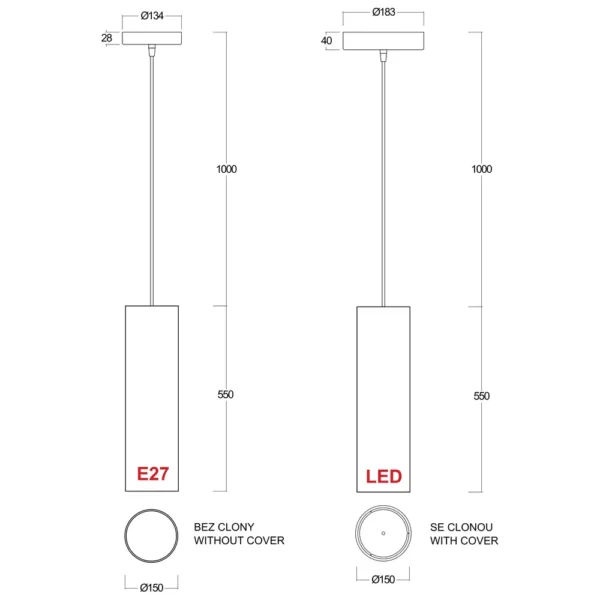

| Width: | 150 mm |
| Length: | 150 mm |
| Height: | 550 mm |
| Diameter: | 150 mm |
| mounting holes (diameter): | 3xØ5mm |
| Installation wire (diameter): | 2xØ14mm |
| Hinge lengths: | 1000 mm |
| Energy class: | D |
| Impact strength: | IK01 |
| Weight NTTO | 3.2 Kg |
| Elektriska data | |
| Output: | 41 W |
| Ingress Protection: | IP20 |
| Socket: | LED modul |
| terminal block: | snap terminal block |
| Luminous | |
| Lum. flux of luminaire: | 8200 lm |
| Lum. flux of light source: | 10 600 lm |
| Temperature: | 3000 K or 4000 K |
| Rated life time LED L80/B10: | 100000 hours |
| CRI: | Ra80 |
| MacAdam: | 3 |
