Beskrivning
Armaturen lämpar sig för stora verksamheter med högt i tak, industriella takutrymmen utomhus och inomhus, lager, verkstäder, sportytor, transportterminaler och brukskonstruktioner utan risk för explosion av gaser, damm och brännbara ångor. Armaturen är resistent mot deformation, damm och vattenstänk.
Features
- Standard model - CRI > 80: 4000 K
- EM kit with battery autotest for M1hAt and M3hAt
- Possibility of delivery of the diffuser with a safety foil (SF)

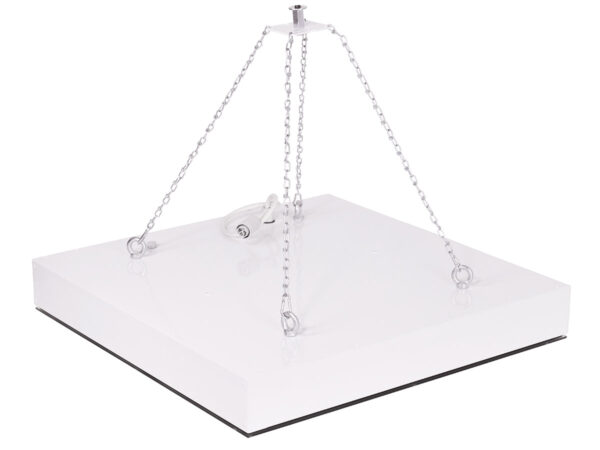

- All versions delivered including suspension lugs M6 (4 pcs)
Technical data
- System efficacy: 143 lm/W
- Degree of protection: IP65
- Minimum ambient temperature: ta = -25 °C
- Maximum ambient temperature: ta = 35 °C
- Minimum ambient temperature: ta = 0 °C version with emergency back-up source
- Maximum ambient temperature: ta = 35 °C version with emergency back-up source
- Life time: 50000 hours / L90/B50
- Impact strength: IK10
- Chromaticity tolerance (initial MacAdam): SDCM3
- Certification CE, ENEC, CB, ESČ, Ballproof
Materials / finishes
- Body: steel sheet, white (RAL 9003)
- Diffuser: satin, heat-strengthened safety glass
- Reflector: steel sheet, white (RAL 9003)
- Sealing: EPDM glued to the base of the light
- Connection: connector, 0.4 m cable
- Cable glands: Terminal block: connector, 0.4 m cable
Electric equipment
- It can be delivered in emergency version
